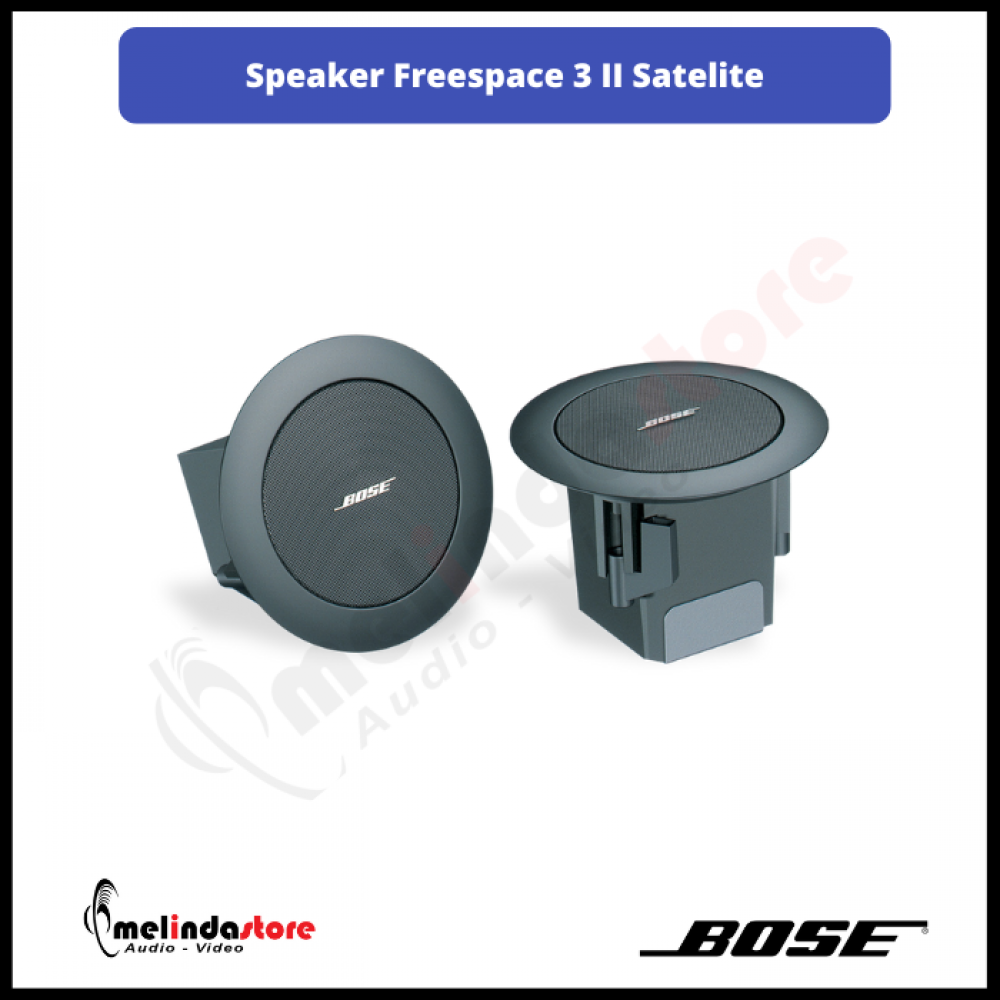

The Bose Professional FreeSpace 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.

FEATURES
Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations

Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules

Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications

Flush-mount components are plenum rated when used with the optional plenum cover

Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module

Can be configured for stereo or mono operation

Applications
Designed for a wide range of applications, including:

Retail stores

Restaurants and bars
Lobbies and conference rooms

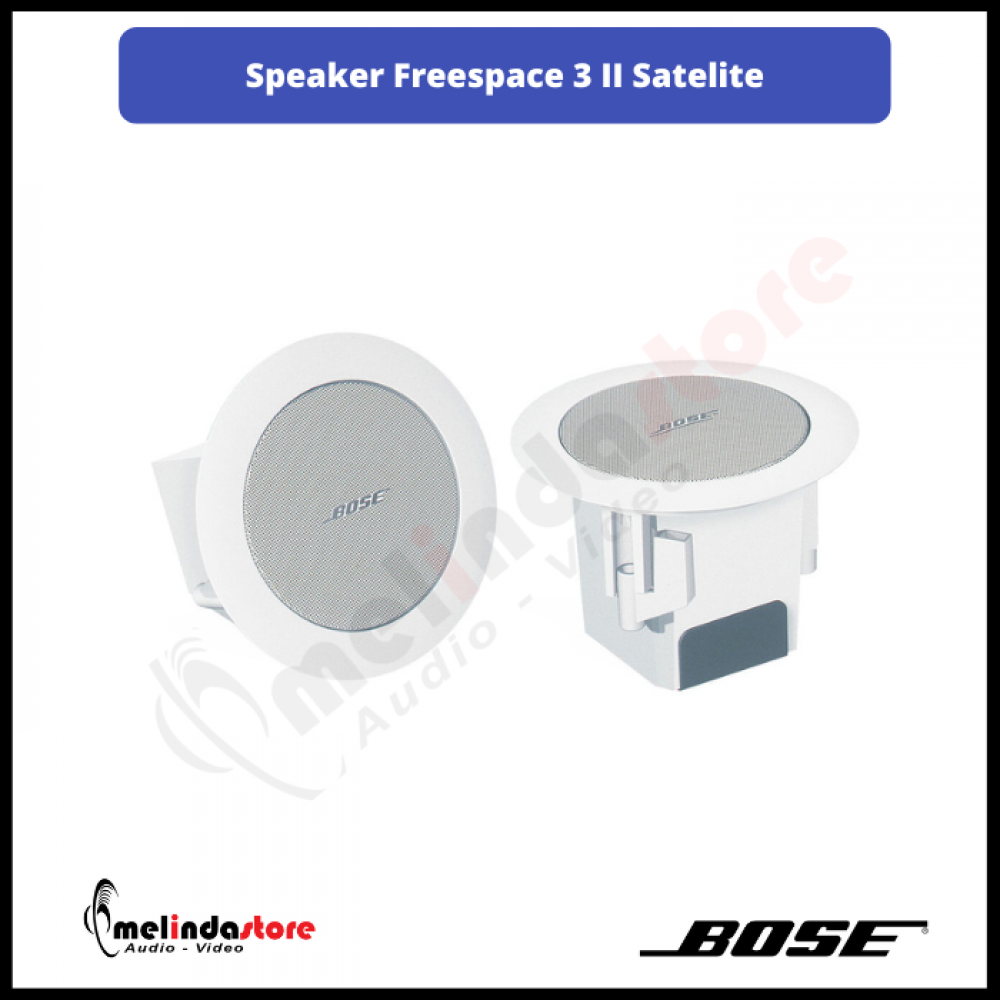

Colors
Black, white

Enclosure Material
PC/ABS

Environmental Testing
Indoor only

Grille Material
Expanded metal

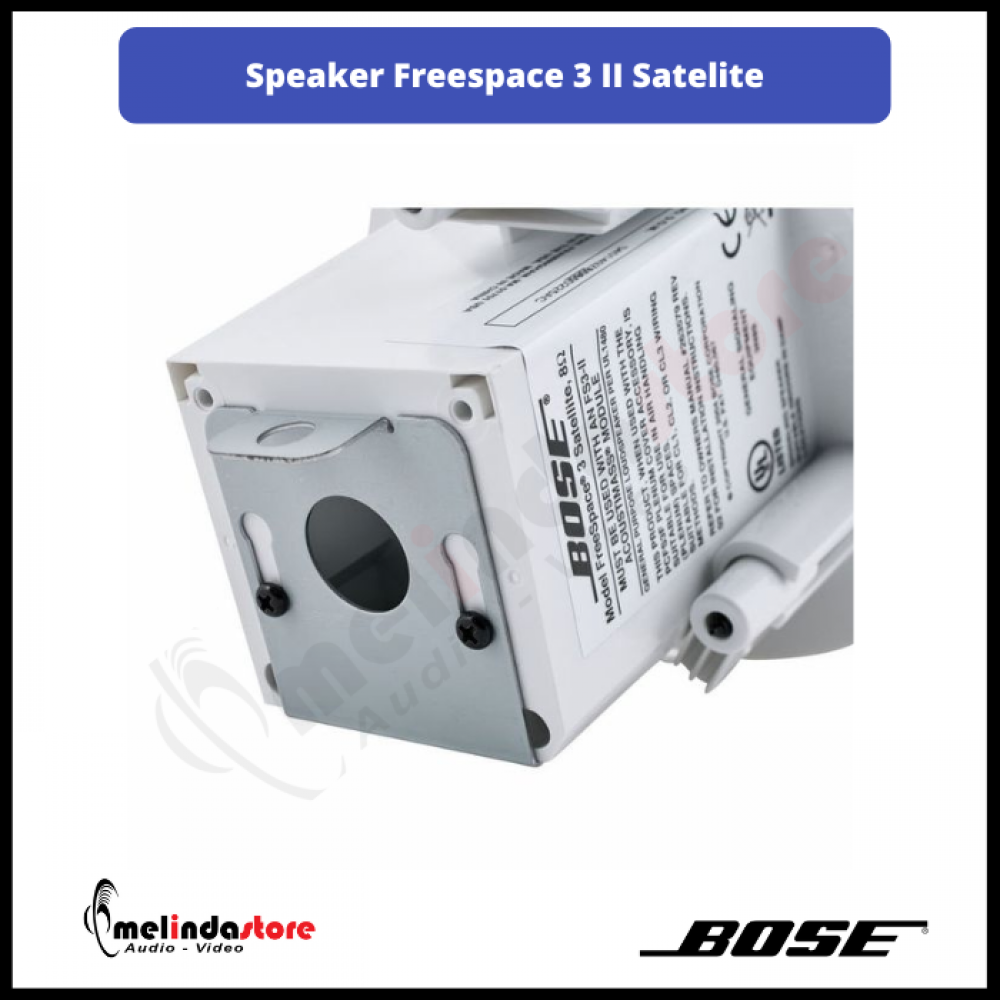

Mounting/Rigging Provisions
(3) mounting arms, (1) seismic chain/safety cable attachment point

Net Weight
1.9 lb (0.9 kg)

Product Dimensions (H×W×D)
6.2 in × 4.8 in (157 mm × 123 mm), loudspeaker diameter × depth / 5.0 in (127 mm), ceiling hole diameter

PERFORMANCE
Frequency Range (-10 dB)
170 Hz – 20,000 Hz

Coverage, Horizontal
170° conical

Maximum SPL at 1 m

Pink noise: 95 dB continuous, 101 dB peak / IEC noise: 92 dB continuous, 108 dB peak

Nominal Impedance
6 Ω

Power Handling, Continuous
12 W

Power Handling, Peak
8 W

Sensitivity (SPL/1 W at 1 m)
84 dB

Transformer Taps, 100V/70V

N/A
