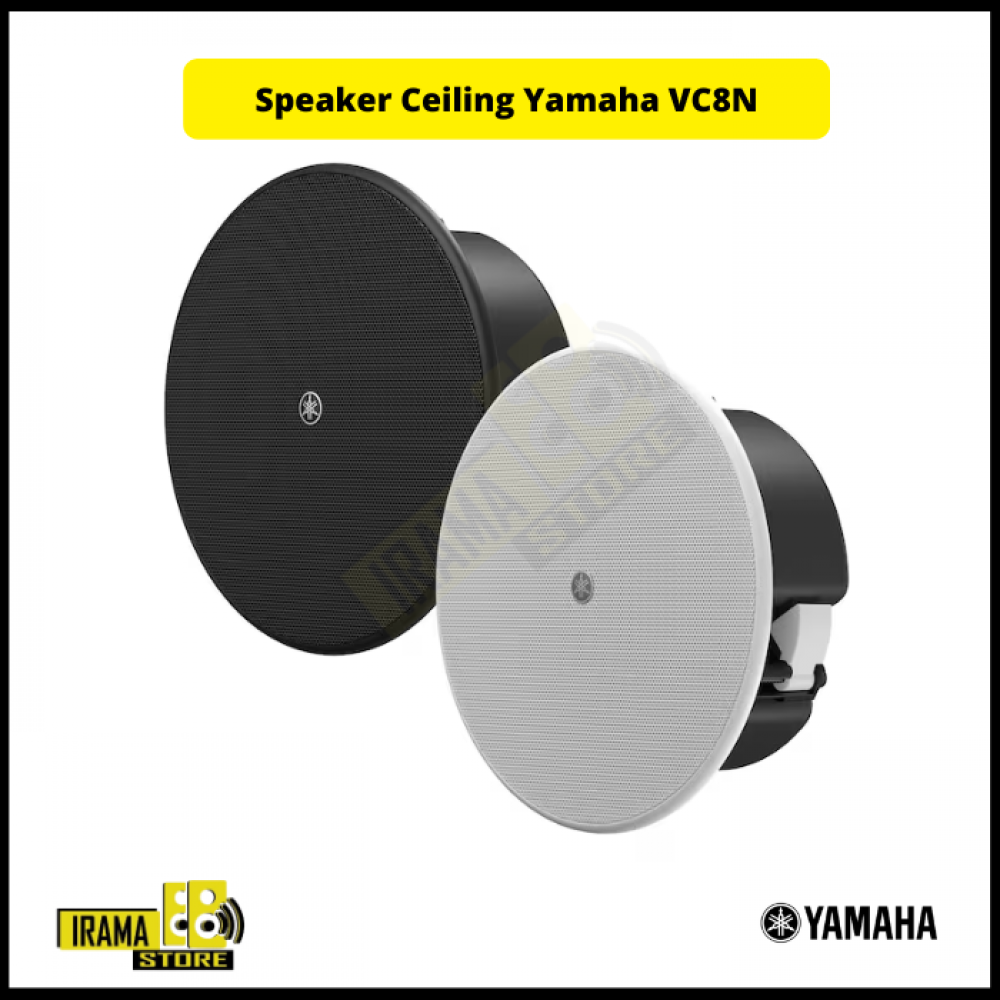

The YAMAHA VC8N is a 2-way coaxial ceiling loudspeaker designed for commercial installations, such as for background music (BGM) and voice reproduction. It is part of the Yamaha VC series of compact ceiling speakers.

Key Features and Specifications

• Speaker Type: 2-way coaxial speaker.

• Components: 8-inch cone woofer (LF) and a 1-inch soft dome tweeter (HF).

• Design: "No back can" low-profile design, which allows for installation in limited ceiling spaces. The grilles are paintable and attach with magnetic catches. It is available in black (VC8NB) and white (VC8NW).

• Impedance and Power:

  • Nominal Impedance: 16 Ω (advantageous for connecting multiple speakers in a low-impedance system).

  • Transformer Taps: Supports both low-impedance and high-impedance connections (70V and 100V).

  • Power Rating: 25 W (NOISE), 50 W (PGM), and 100 W (MAX).

• Performance:

  • Frequency Range (-10 dB): 52 Hz - 20 kHz.

  • Coverage Angle: 110° conical.

  • Sensitivity (1 W, 1 m): 91 dB SPL.

  • Maximum SPL (Calculated, 1 m): 111 dB SPL.

• Dimensions and Weight:

  • Dimensions: $\O$ 325 mm x D 131 mm ($\O$ 12-3/4" x D 5-1/8").

  • Cutout Size: $\O$ 285 mm ($\O$ 11-1/4").

  • Weight: 2.8 kg (6.2 lbs).

Harga tertera untuk : 1 Unit
