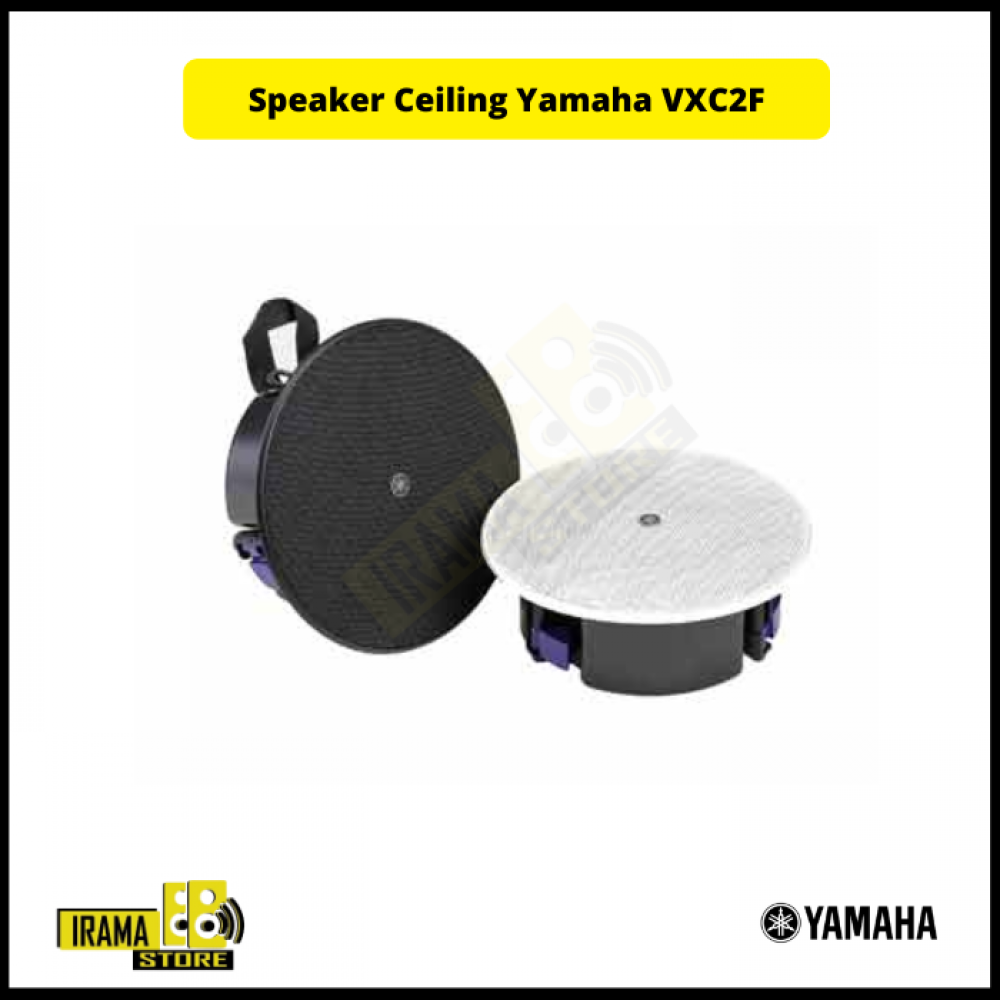

The Yamaha VXC2F is a low-profile, full-range, in-ceiling speaker designed for background music (BGM) reproduction in commercial installations like restaurants, cafes, retail stores, and hotels. It is the most compact and shallow model in Yamaha's VXC-F series.

Key Features and Specifications

• Speaker Type: Full-range, bass-reflex design with a back can.

• Driver: 2.5-inch full-range speaker unit.

• Audio Performance:

  • Frequency Range (-10dB): 67 Hz - 20 kHz

  • Nominal Coverage: 160° conical

  • Sensitivity (1W, 1m): 86 dB SPL

  • Calculated Peak SPL: 104 dB SPL

• Power Handling:

  • Noise: 15 W

  • PGM (Program): 30 W

  • PEAK: 60 W

• Impedance and Connections:

  • Nominal Impedance: 8 Ω

  • Transformer Taps (High-Impedance):

    • 100V: 15 W, 7.5 W, 3.8 W, 1.9 W

    • 70V: 15 W, 7.5 W, 3.8 W, 1.9 W, 1 W

  • Connectors: Euroblock (4-pin) for input and loop-thru connections.

• Installation and Design:

  • Low-profile and Lightweight: Its shallow depth (89 mm / 3.5 inches) and low weight (1.7 kg / 3.7 lbs) make it easy to install in limited ceiling spaces.

  • Dual-purpose Design: Supports both low-impedance (8 Ω) and high-impedance (70V/100V) connections, which can be easily switched.

  • Magnetic Grilles: The paintable grilles are held in place with magnets for a secure and clean look.

  • Double-Threaded Screws: The speaker clamp screws are double-threaded for faster and more efficient tightening during installation.

  • Built-in Carrying Band: A safety feature that makes the speaker easier to handle and install.

• Physical Dimensions:

  • Diameter: 225 mm (8-7/8")

  • Depth: 89 mm (3-1/2")

  • Cutout Size: Ø186 mm (Ø7-5/16")

  • Weight: 1.7 kg (3.7 lbs)

• Color Options: Available in black (VXC2FB) and white (VXC2FW).

• Optional Accessories:

  • PK-C4: Pendant-mount kit for hanging the speaker from open ceilings.

  • AB-C2: Tile rail kit for ceiling tile installations.

Harga tertera untuk : 1 Unit
