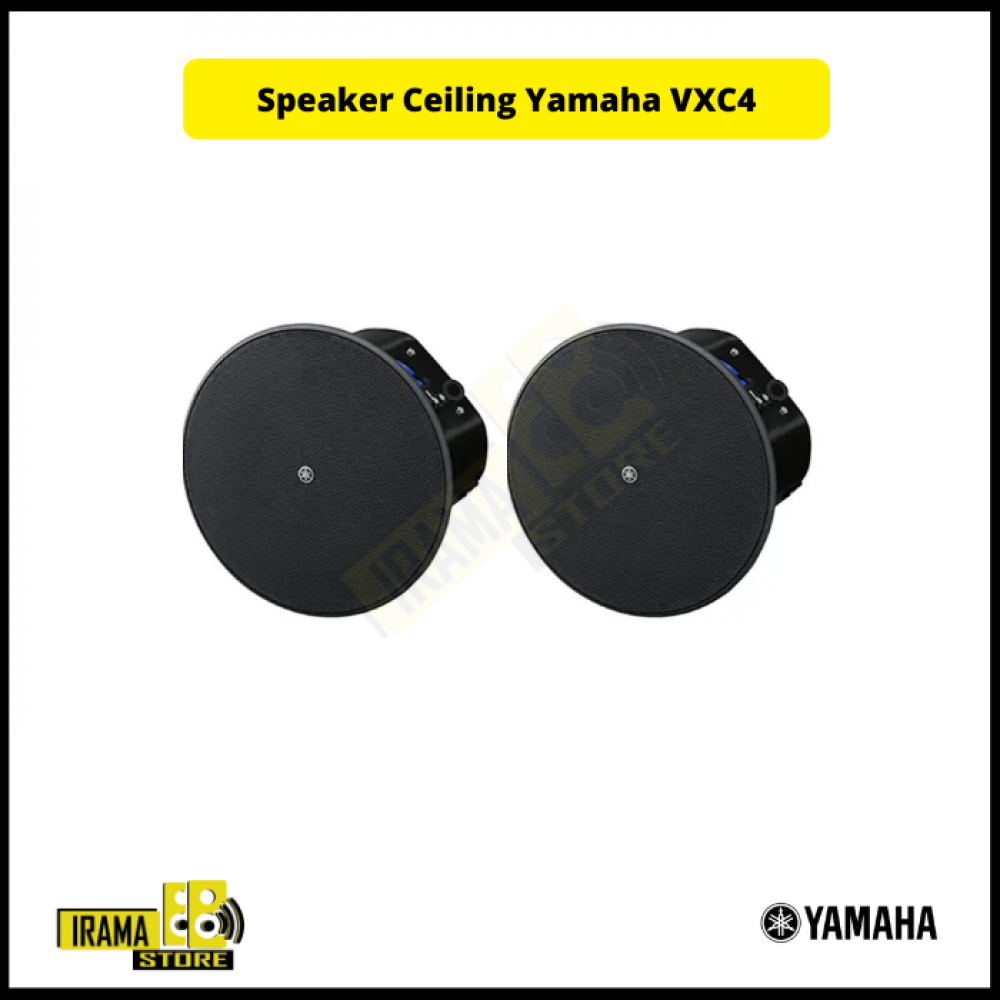

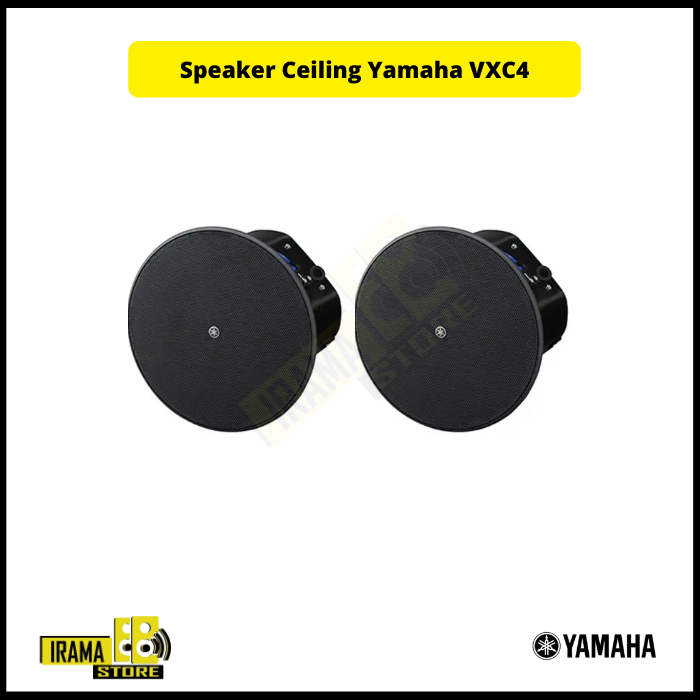

The Yamaha VXC4 is a 4-inch, full-range, bass-reflex ceiling loudspeaker. It is part of Yamaha's VXC series of speakers, which are designed for commercial installations, providing high-quality sound for background music and public announcements.

Here are some key features and specifications of the VXC4:

Key Features:

Full-Range Performance: The speaker uses a single 4-inch full-range driver, which is optimized to deliver a balanced sound for both background music (BGM) and clear, articulate speech.

Versatile Impedance: The VXC4 is equipped with an internal transformer that allows it to be used in both low-impedance (8Ω) and high-impedance systems (70V/100V). This makes it highly adaptable to different audio system designs. The power taps can be easily selected on the baffle.

Easy and Safe Installation: Yamaha has incorporated several features to simplify the installation process and ensure safety:

Anti-drop tabs: These tabs allow the speaker to be temporarily mounted in the ceiling, leaving your hands free to connect the wiring.

Carrying band: A flexible carrying band makes it easy to transport multiple speakers at once.

Double-threaded screws: The speaker clamp screws are double-threaded for quicker tightening.

Accessories: It comes with O-rings and tile rails for a secure and smooth installation.

Discreet Design: The VXC4 has a low-profile design and a paintable grille with a hexagonal pattern that blends in with most interior aesthetics. It is available in black (VXC4) and white (VXC4W).

Durable Construction: The cabinet is made from a carefully selected plastic with the right tensile strength, and the design features optimized bass-reflex tuning for a tight low-end.

Specifications:

Speaker Type: Full-range, bass-reflex

Frequency Range (-10dB): 80 Hz – 20 kHz (in half-space)

Nominal Impedance: 8Ω

Power Rating:

NOISE: 30W

PGM (Program): 60W

PEAK: 120W

Transformer Taps:

100V: 30W, 15W, 7.5W

70V: 30W, 15W, 7.5W, 3.8W

Sensitivity (1W, 1m): 87 dB SPL

Nominal Coverage: 130° conical

Dimensions: Ø225mm x 195mm (Ø8.9" x 7.7")

Net Weight: 2.6 kg (5.7 lbs)

Cutout Size: Ø186mm (Ø7.3")

The VXC4 is a reliable and well-designed speaker, praised for its sound quality, versatility, and user-friendly installation features, making it a popular choice for commercial audio applications.

Harga tertera untuk : 1 Pair
