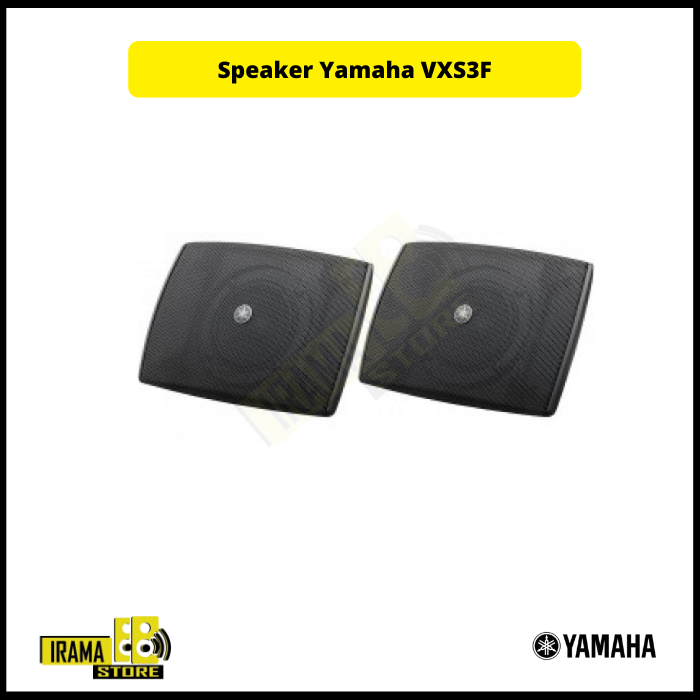

The Yamaha VXS3F is a compact, full-range, surface-mount speaker designed for commercial installations such as retail stores, restaurants, and other environments where a discreet and aesthetically pleasing speaker is desired for background music.

Here are some of its key features and specifications:

General Characteristics

• Speaker Type: Full-range, acoustic suspension

• Driver: 3.5-inch cone

• Models: Available in black (VXS3F) and white (VXS3FW). The enclosures and grilles are paintable to match any decor.

• Mounting: Comes with a dedicated bracket for wall and ceiling installation. The design is intended to appear as if the speaker is "floating."

• Packaging: Sold and priced as a pair.

Performance Specifications

• Frequency Range (-10dB): 130 Hz to 20 kHz

• Nominal Impedance: 8 Ω

• Power Rating:

  • Noise: 20W

  • Program: 40W

  • Peak: 80W

• SPL (Sound Pressure Level):

  • Sensitivity (1W, 1m on axis): 86 dB SPL

  • Peak (Calculated): 105 dB SPL

• Nominal Coverage Angle:

  • Horizontal: 150°

  • Vertical: 160°

Physical & Connectivity

• Dimensions (W x H x D): 184 mm x 130 mm x 94 mm (without bracket) or 184 mm x 130 mm x 134 mm (with bracket).

• Weight: 1.0 kg (2.2 lbs) for the speaker itself, and 1.1 kg (2.4 lbs) with the bracket.

• I/O Connectors: One 4-pin Euroblock connector for input and loop-thru connections.

• Protection Circuit: Features a full-range power limiting circuit to protect the components.

The VXS3F is a low-impedance model, making it suitable for smaller installations where only a few speakers are needed. For larger, more complex areas that require many speakers, Yamaha offers the VXS3FT, which is a high-impedance (transformer) version of the same speaker, allowing for adjustable power taps.

Harga tertera untuk : 1 Pair
